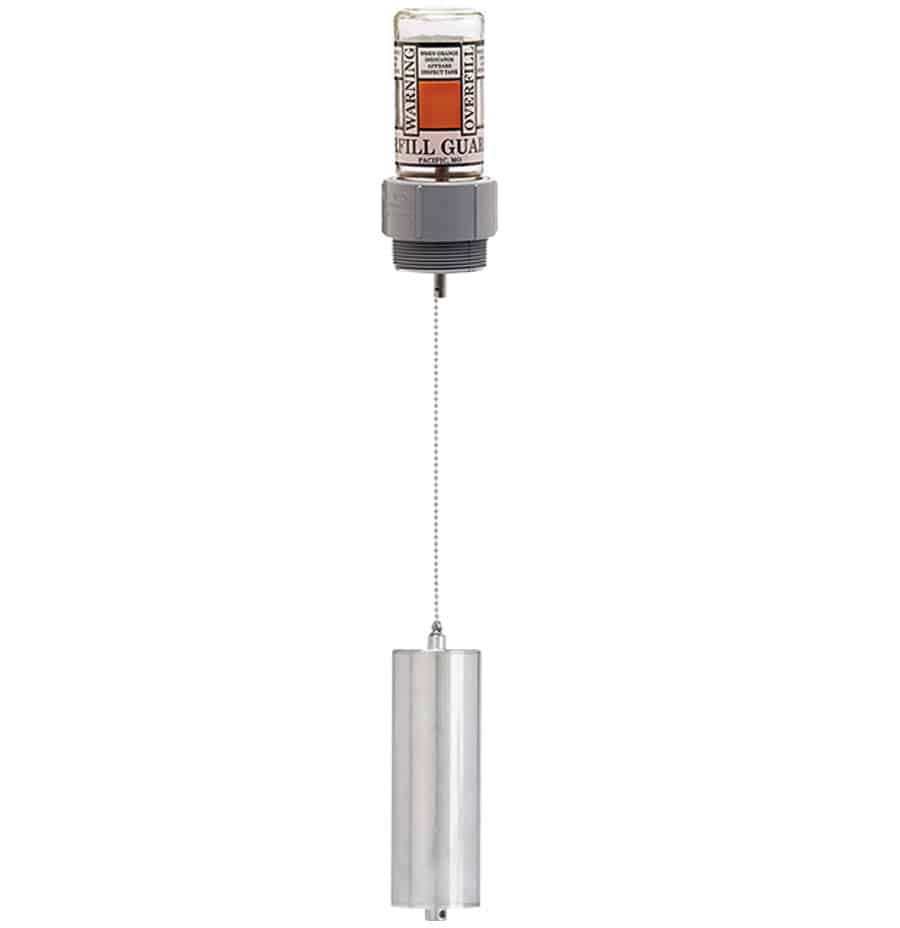

Overfill Tank Gauges

For use with oil, waste oil, diesel fuel, antifreeze, water and other fluids with a high flash point.
Large glass 4 window display.
Highly visible orange indicator with UV inhibitor.
Available with 2” NPT, 1-1/2” NPT, 2” BSP, and 1-1/2” BSP.
Nickel-plated brass chain. Field adjustable to 24” from top of tank. (extended chain available).
Aluminum float.

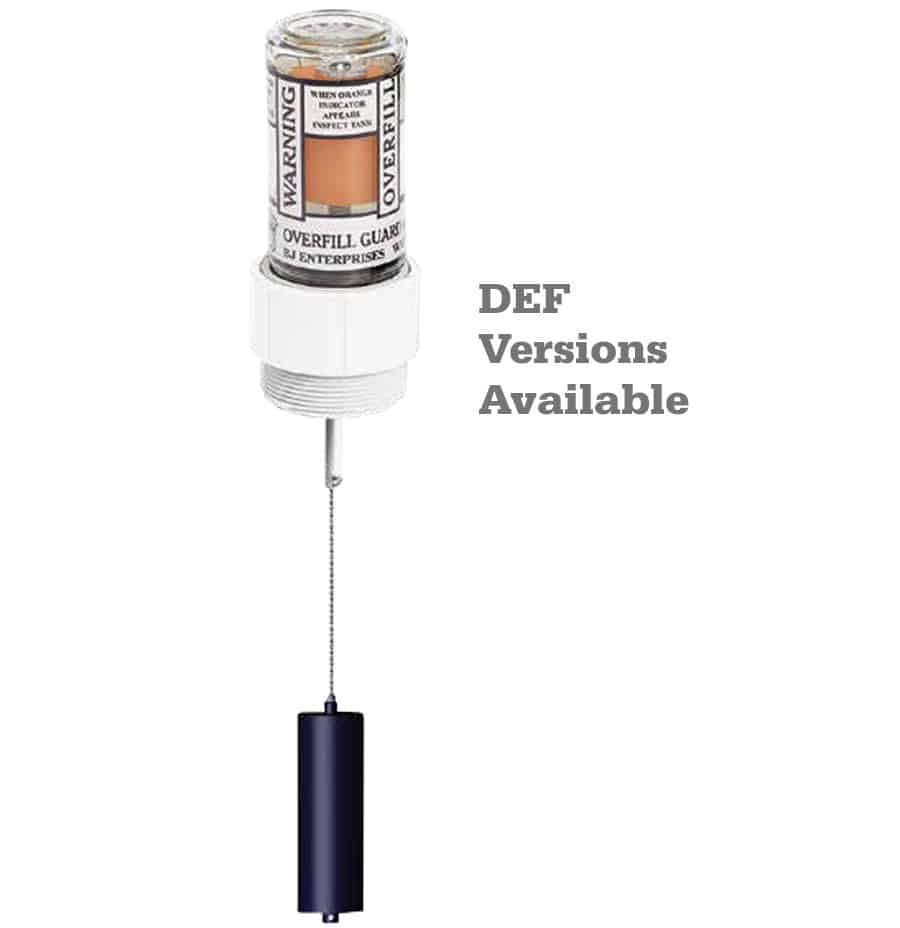

DEF: Constructed from materials 100% compatible with Diesel Exhaust Fluid (DEF).

Catalog Sheets

Jarhead Overfill Guards DEF Jarhead Overfill Guards

Construction

Material: Sightglass
Chain: Nickel-plated brass
Float: Aluminum

DEF Jarheads:
Body: Large glass housing
Rods: Stainless steel
Fasteners: Stainless steel
Connectors: Acetal
Linkage: Acetal
Float: DEF Compatible Anodized Aluminum
Seals: Fluorocarbon

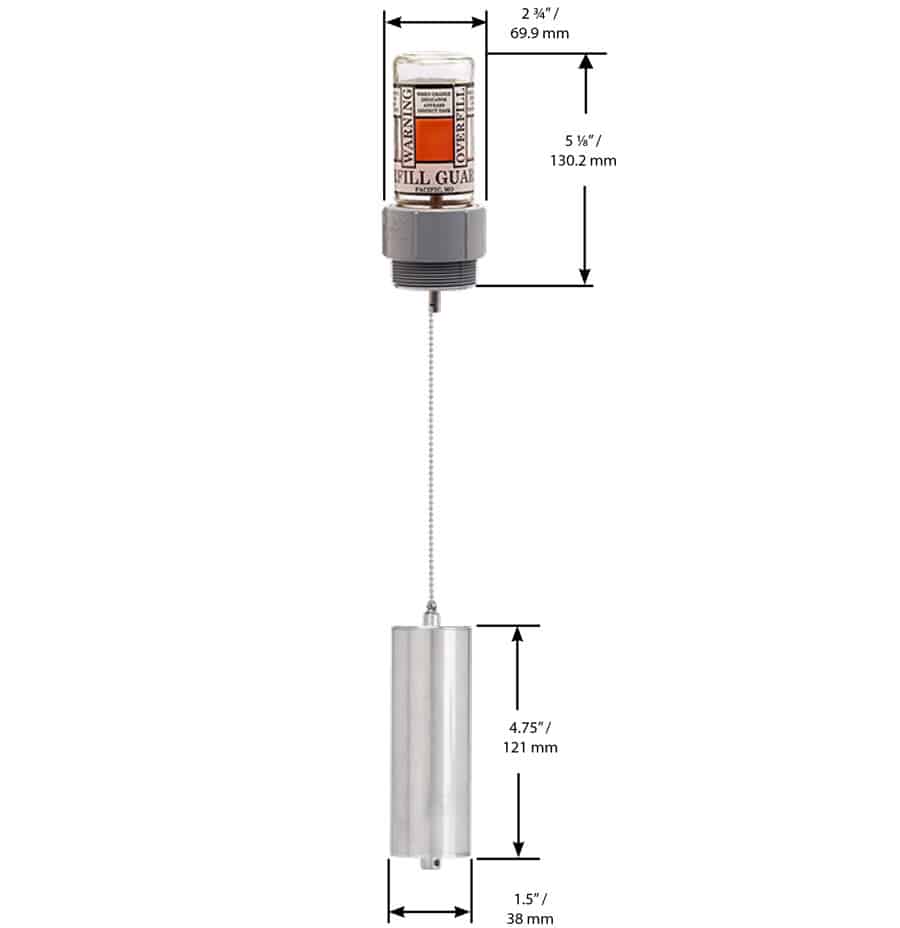

Dimensions

Overfill Tank Gauges

Jarhead Gauges

NPT Overfill Tank Gauges

Choose …

BSP Overfill Tank Gauges

Choose …

DEF Overfill Tank Gauges

Choose …

Jarhead Accessories (non-DEF)

Choose …

007551: #2 Ball Chain

007552: Eyelet, Brass

011426: 2” Jarhead Adaptor

007829: 1-1/2” Jarhead Adaptor

007692: Jarhead Jar

EZ-Connects for this product have not been configured.
