Home | BJE | Tank Monitors/Alarms | Tank Gauge

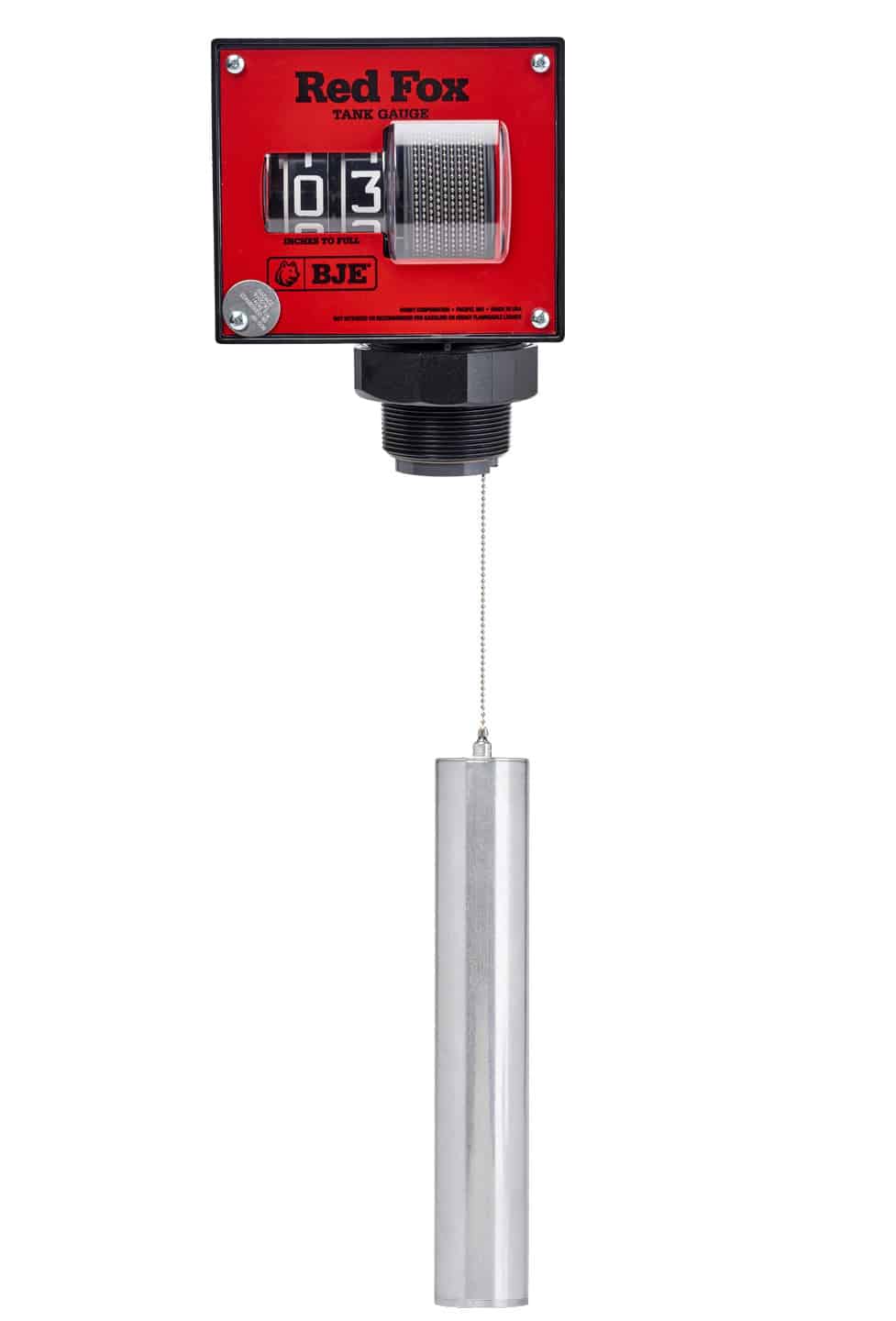

#008566: Red Fox®
Tank Gauge
Numbers decrease as fluid level rises indicating how many inches are left until the tank is full. For use with oil, waste oil, diesel fuel, antifreeze, and other fluids with a high flash point.
Product Info
Resources
Specs / Construction
Features/Benefits
  • One gauge accommodates tanks up to 99”.
  • Large number display.
  • Moulded housing.
  • Direct drive.
  • Oversized aluminum float assembly rotates to prevent chain entanglement.
  • For use with oil, waste oil, diesel fuel, antifreeze, and most liquids with a high flash point.
  • New swivel allows easy orientation of gauge after installation.
Construction

Nickel-plated brass chain
2" NPT threads

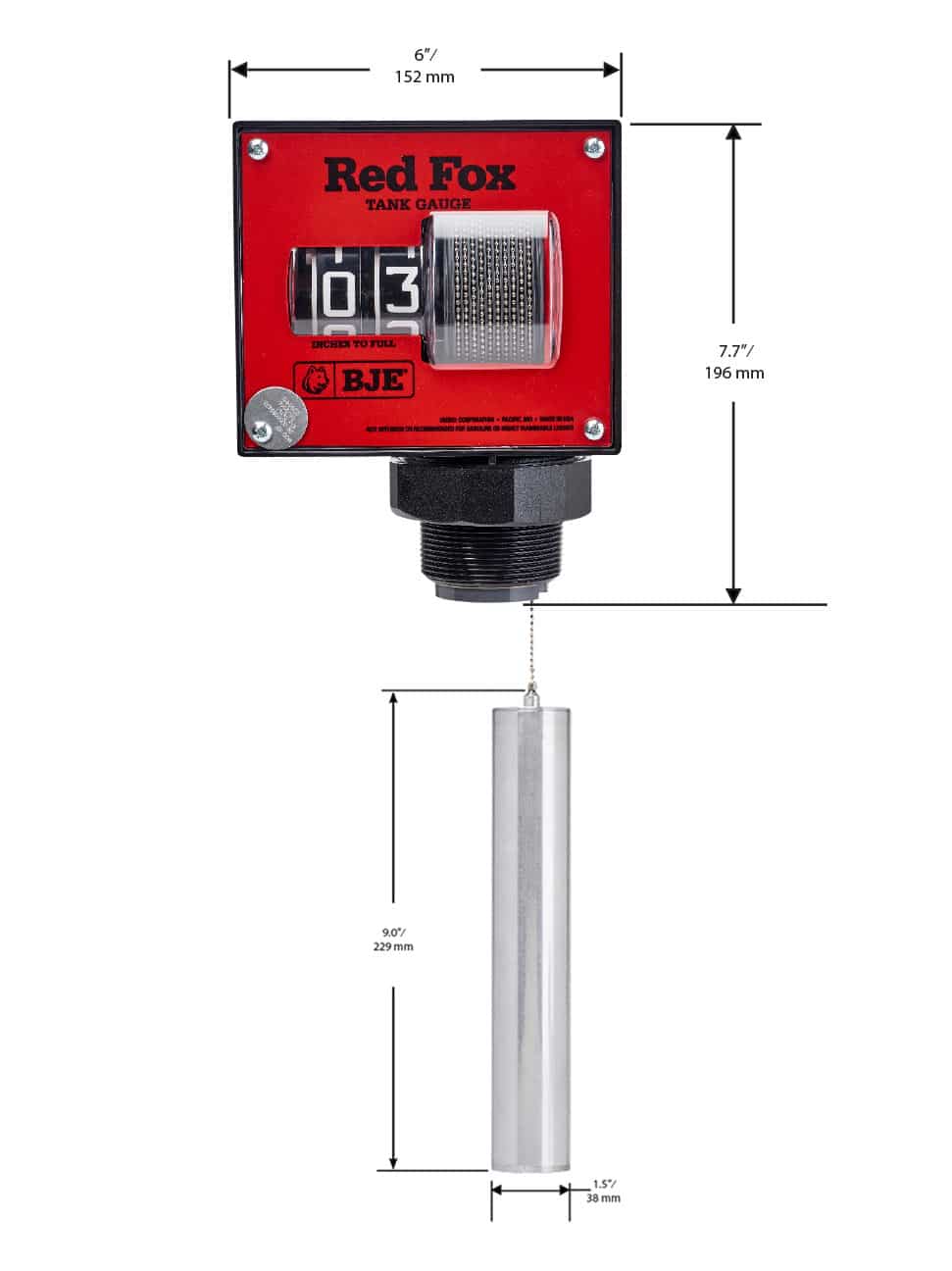

Dimensions
Accessories/Options
Floats
Floats
Choose …
007615: 1-1/2" Vertical Float
007616: 2" Horizontal Float
Accessories
Choose …
007551: Chain, #2 Ball
007552: Eyelet, Brass
007639: Clear Acrylic Cover
EZ-Connects for this product have not been configured.
