007715 TT-12 Crusher

Home | BJE | Oil Filter Crushers | TT-12 Crusher

#007715: Tractor Trailer and Truck Filters

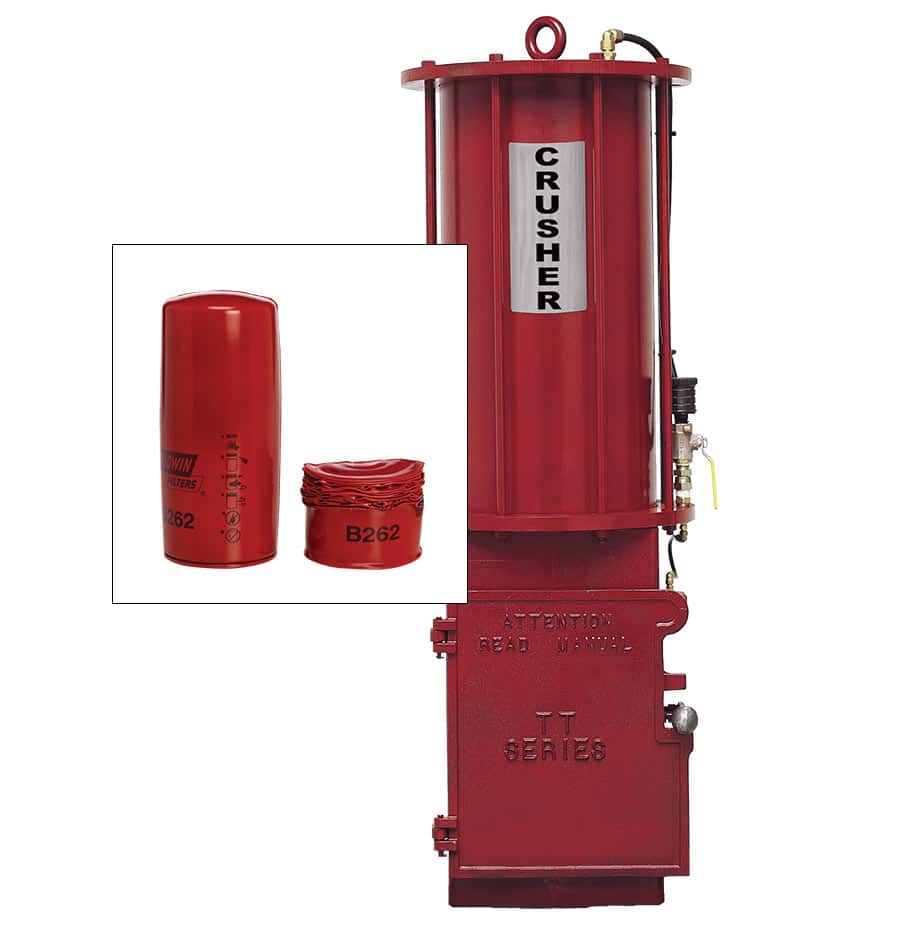

TT-12 Crusher

Pneumatic Oil Filter Crusher for tractor trailer and truck filters.

Product Info

Resources

Specs / Construction

Features/Benefits

Reduces filters by 75% of original size, and removes 95% of the free-flowing oil so it can be recycled.
Large crushing chamber: accepts filters up to 16” tall x 9” diameter.
Only one moving part, a 2” shaft.
Safety door - crusher will not operate if door is opened.
Cycle time: 23 seconds.
Air requirement: 125 to 175 PSI.
Air regulator not needed. Oiler and lubricator not needed.
All parts in contact with air are rust proof.
Optional stand (sold separately).
Lifetime warranty on housing, one year limited on all other parts.
Crusher weight 358 lbs. With stand 470 lbs. (Shipping weight 530 lbs. Trucked on pallet.)

Construction

Overall Size: 51” high, 18” wide, 17” deep
Weight: Crusher weight 358 lbs. With stand 470 lbs. (Shipping weight 530 lbs. Trucked on pallet.)
Cycle Time: 23 seconds
Air requirement: 125 to 175 PSI.

Dimensions

Accessories

Repair Parts

Replacement Parts

Choose …

007599: C4, C6 TT12 Ball Valve

007644: TT12 Cylinder

007604: TT12 Cylinder

007863: TT12, TT25 Push Plate

007799: TT12 Door

007796: TT12 Return Spring

007800: TT12 Shaft

007642: C4, C6 TT12 MJV-3 Air Clippard Valve

007719: C4, C6, TT12 Muffler

007749: C4, C6, TT12 S1205 Safety Valve

007793: TT12 Handle

007856: TT12 1/2” OD x .062 Tubing

007795: C4, C6, TT12 Muffler

007794: TT12 12” Large O-Ring

007902: C4, C6, TT12 1-1/4” 12 Jam Nut

007903: C4, C6, TT12 1-1/8” Washer

007904: C4, C6, TT12, TT25 3/8” Ball Bearing Switch

007905: C4, C6, TT12, TT25 Safety Switch Spring

007906: C4, C6, TT12, TT25 1/4” x 2-1/4” Clevis Pin

007907: C4, C6, TT12, TT25 3/8” ID x 1/2” OD Bearing

007908: C4, C6, TT12, TT25 1/4” x 1-1/2” Clevis Pin

007909: C4, C6, TT12, TT25 3/32” x 1/2” Cotter Pin

007917: C4, C6, TT12. TT25 3/8” x 2-1/4” Grade 8 Tap Bolt

007918: C4, C6. TT12, TT25 3/8” x 16 Stover Nut

007938: C4, C6, TT12, TT25 5/16” Flat Washer

007940: C4, C6, TT12 1/4” Air Hose Assembly
