Home | BJE | Oil Filter Crushers | TT-12 Crusher
#008210: Tractor Trailer and Truck Filters
TT-12 Crusher

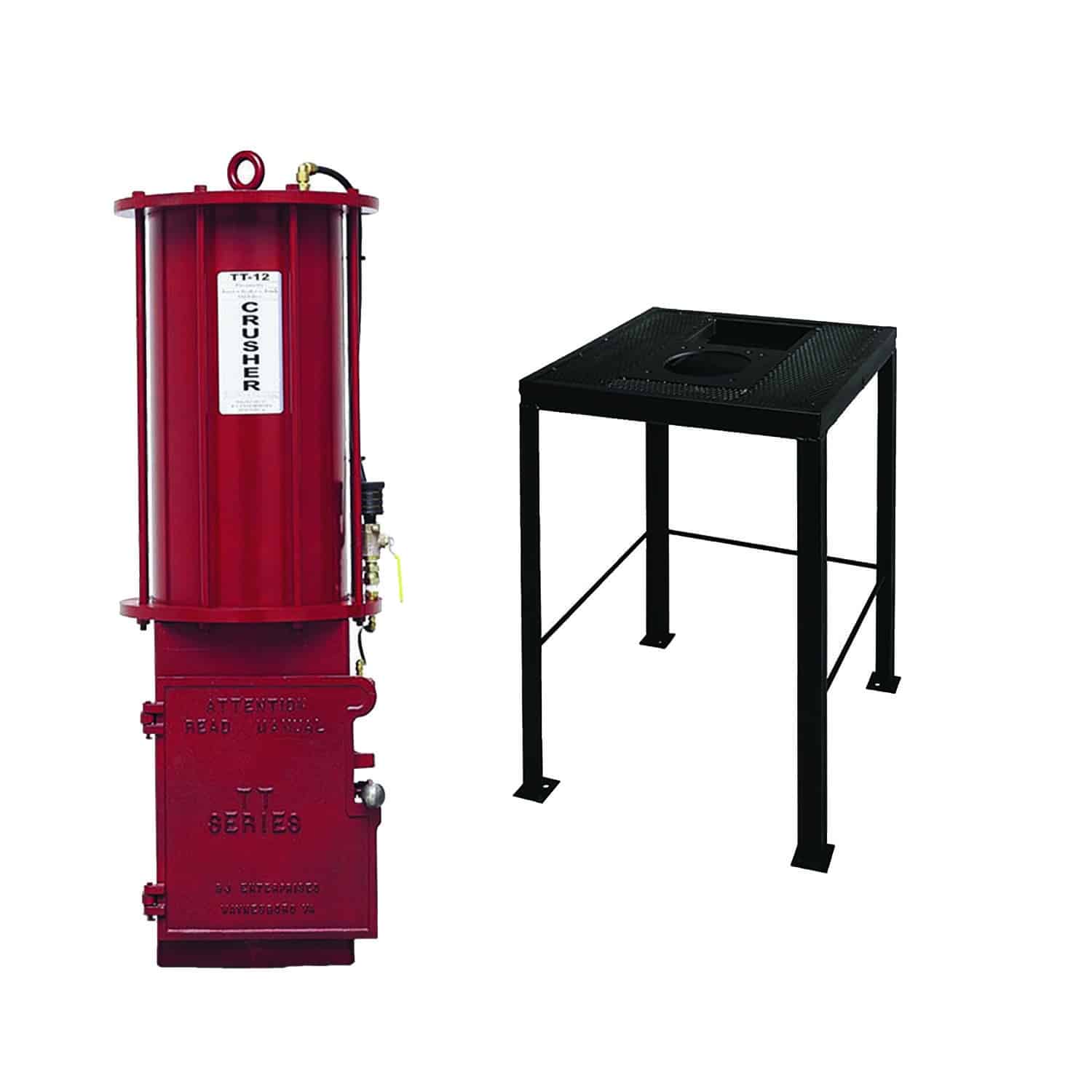

Pneumatic Oil Filter Crusher for tractor trailer and truck filters.
Product Info
Resources
Specs / Construction
Features/Benefits

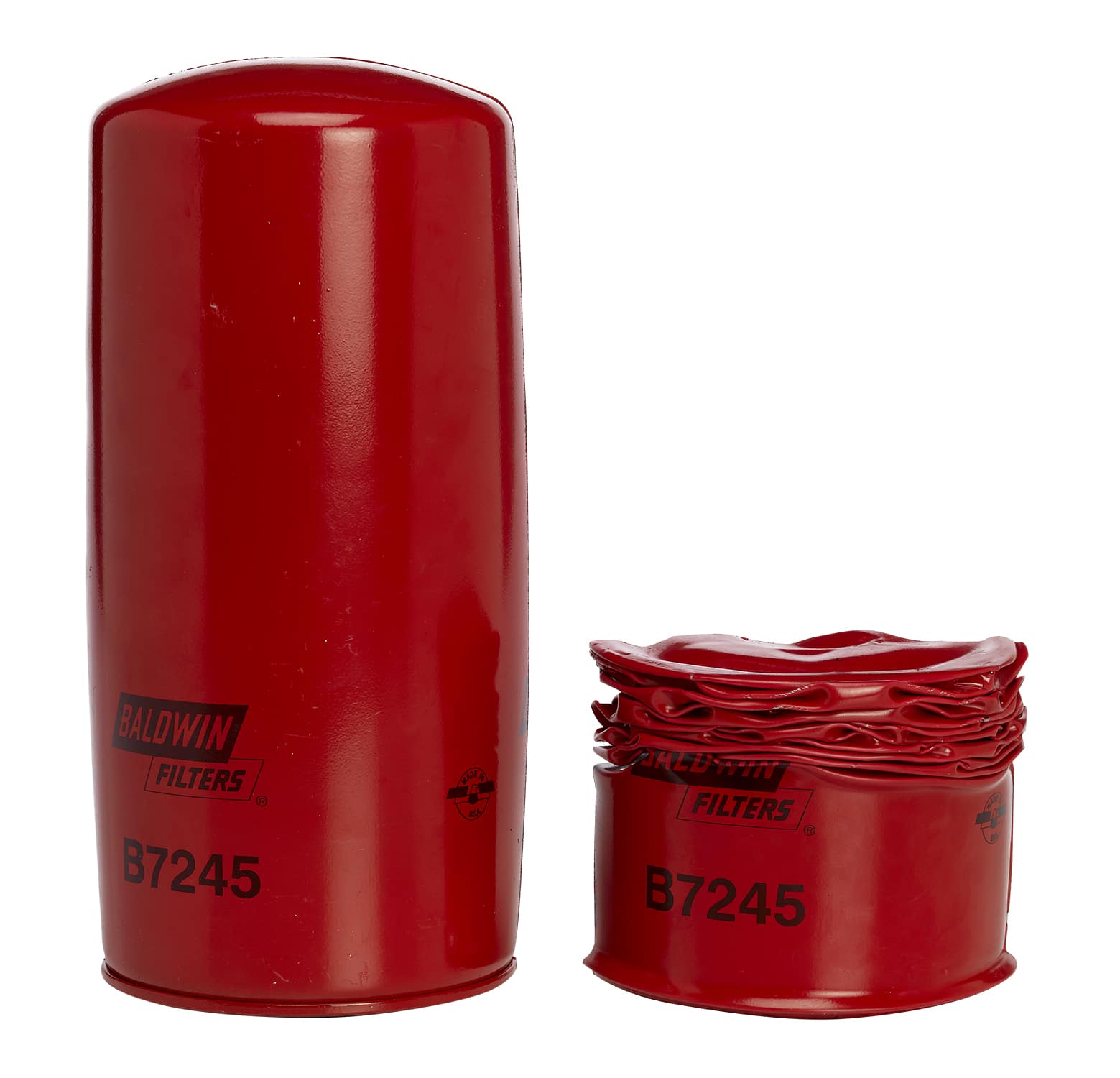

  • Reduces filters by 75% of original size, and removes 95% of the free-flowing oil so it can be recycled.
  • Large crushing chamber: accepts filters up to 16” tall x 9” diameter.
  • Only one moving part, a 2” shaft.
  • Safety door - crusher will not operate if door is opened.
  • Cycle time: 23 seconds.
  • Air requirement: 125 to 175 PSI.
  • Air regulator not needed. Oiler and lubricator not needed.
  • All parts in contact with air are rust proof.
  • Optional stand (sold separately).
  • Lifetime warranty on housing, one year limited on all other parts.
  • Crusher weight 358 lbs. With stand 470 lbs. (Shipping weight 530 lbs. Trucked on pallet.)
Construction

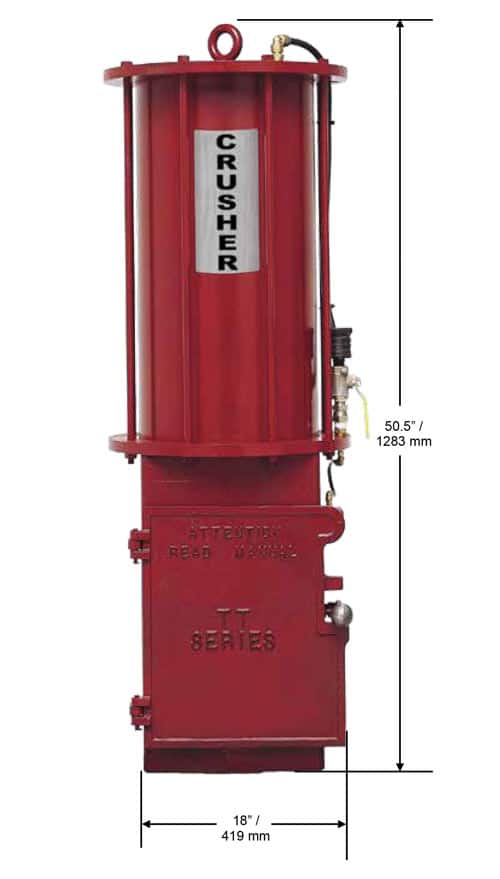

Overall Size: 51” high, 18” wide, 17” deep
Weight: Crusher weight 358 lbs. With stand 470 lbs. (Shipping weight 530 lbs. Trucked on pallet.)
Cycle Time: 23 seconds
Air requirement: 125 to 175 PSI.

Dimensions
Accessories
Repair Parts
Replacement Parts
Choose …
007599: C4, C6 TT12 Ball Valve
007644: TT12 Cylinder
007604: TT12 Cylinder
007863: TT12, TT25 Push Plate
007799: TT12 Door
007796: TT12 Return Spring
007800: TT12 Shaft
007642: C4, C6 TT12 MJV-3 Air Clippard Valve
007719: C4, C6, TT12 Muffler
007749: C4, C6, TT12 S1205 Safety Valve
007793: TT12 Handle
007856: TT12 1/2” OD x .062 Tubing
007795: C4, C6, TT12 Muffler
007794: TT12 12” Large O-Ring
007902: C4, C6, TT12 1-1/4” 12 Jam Nut
007903: C4, C6, TT12 1-1/8” Washer
007904: C4, C6, TT12, TT25 3/8” Ball Bearing Switch
007905: C4, C6, TT12, TT25 Safety Switch Spring
007906: C4, C6, TT12, TT25 1/4” x 2-1/4” Clevis Pin
007907: C4, C6, TT12, TT25 3/8” ID x 1/2” OD Bearing
007908: C4, C6, TT12, TT25 1/4” x 1-1/2” Clevis Pin
007909: C4, C6, TT12, TT25 3/32” x 1/2” Cotter Pin
007917: C4, C6, TT12. TT25 3/8” x 2-1/4” Grade 8 Tap Bolt
007918: C4, C6. TT12, TT25 3/8” x 16 Stover Nut
007938: C4, C6, TT12, TT25 5/16” Flat Washer
007940: C4, C6, TT12 1/4” Air Hose Assembly
